Polypropylene Puqiang FDY Spinning Combined Drafting Machine: This equipment is mainly used to produce 100D～1800D, fine, medium and coarse denier medium and low strength polypropylene FDY stretched yarn.

Filament use: office furniture cloth, car decoration, luggage fabric, webbing, rope, rope net, engineering fiber. Hair and so on.

967彩票Equipment features: 1, low energy consumption. 2. The equipment runs stably with low failure rate and high output. 3. Easy operation and maintenance

967彩票Equipment model: RH-P4, RH-P6, RH-P8, RH-P12, RH-P16

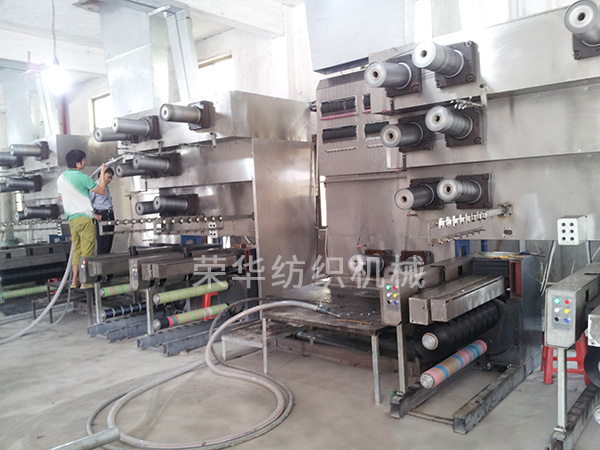

Upjohn Polypropylene FDY spinning equipment:

967彩票Polypropylene FDY spinning equipment Upjohn equipment is mainly used for spinning 100 to 2000 denier polypropylene filament Upjohn, the product is fully oriented drawn yarn (FDY). Its raw material is polypropylene slice.

Upjohn polypropylene filament mainly used for: curtain cloth, sofa cloth and other office furniture, as well as luggage belt, packet-zone Simmons, ropes and other fields.

967彩票 The basic parameters of the device:

 Finished fineness: 100 to 2000 (Dan)

967彩票 Mechanical speed (maximum): 3000m / min

967彩票 Process speed (maximum): 1600m / min ~ 2400m / min

Parts per tow Number: 4,6,8,12,16 beam

967彩票 Number drafting zone: Zone 3

Equipment main components:

967彩票1, the automatic feeder

2, masterbatch injection machine

967彩票3, screw extruder

4, pre-filter (selected by the user)

5 spinning boxes and components

6, metering pumps and drive

967彩票7, a side corridor hair and

8, drawing heat roller

9, winding frame and nozzle (tanker) oiling

10, the network device

11, automatic winding machine

967彩票12, the electronic control system: with screw voltage control cabinet, spinning box temperature control cabinet, temperature-controlled cabinet drawing, drawing frequency counters, frequency counters and winding conventional electrical control system.

967彩票Device main features:

967彩票1. Can be used in the field of renewable materials

967彩票2. The high-frequency heat roller can be heated, low energy consumption, hot roll temperature uniformity

967彩票3. side blowing velocity uniformity and stability

967彩票4. equipment operation and stability, low failure rate, easy operation and maintenance
