Polypropylene Monochrome BCF Spinning Equipment: This equipment is mainly used to produce 1000D～3300D polypropylene expanded filament.

Filament use: carpet, decorative cloth, handicrafts, aluminum alloy sealing strips, hair silk, etc.

Equipment features: 1, low energy consumption. 2. The equipment runs stably with low failure rate and high output. 3. Easy operation and maintenance

967彩票Equipment model: RH-BCF2, RH-BCF3

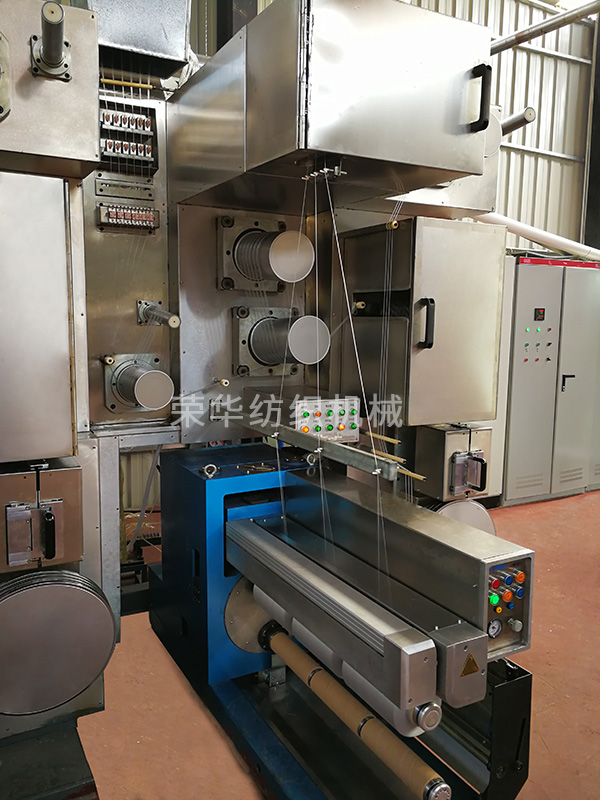

PP BCF (monochrome and color) equipment

PP BCF spinning machine is mainly used for spinning equipment from 1000 to 3300 denier polypropylene bulked continuous filament. Its raw material is polypropylene slice.

967彩票PP BCF yarn mainly used for: carpets, industrial filter, and other fields.

  The basic parameters of the device:

  967彩票Finished fineness: 1000 to 3300 (Dan)

  Mechanical speed (maximum): 3000m / min

  967彩票Process speed (maximum): 1600m / min ~ 2000m / min

Parts per tow Number: 2,3 Beam

Equipment main components:

967彩票1, the automatic feeder

2, masterbatch injection machine

3, screw extruder

967彩票4, pre-filter (selected by the user)

5 spinning boxes and components

967彩票6, metering pumps and drive

7, the side hair, air conditioning units and corridor

8, oiling device, pre-network device

9, drawing heat roller

10, puffing, a cold drum

11, winding rack

967彩票12, the network device

967彩票13, automatic winding machine

14, electronic control system: with screw voltage control cabinet, spinning box temperature control cabinet, temperature-controlled cabinet drawing, drawing frequency counters, frequency counters and winding conventional electrical control system.
