967彩票Polypropylene high strength FDY spinning combined drafting machine: This equipment is mainly used to produce 150D～1400D, fine, medium and coarse denier high strength polypropylene FDY stretched yarn.

Filament use: seat belts, safety nets, conveyor belts, industrial sewing threads, fire hoses, slings, etc.

967彩票Equipment features: 1, low energy consumption. 2. The equipment runs stably with low failure rate and high output. 3. Easy operation and maintenance

967彩票Power range: 7.0g/d⁓7.5g/d

Equipment model: RH-G4, RH-G6, RH-G8, RH-G12

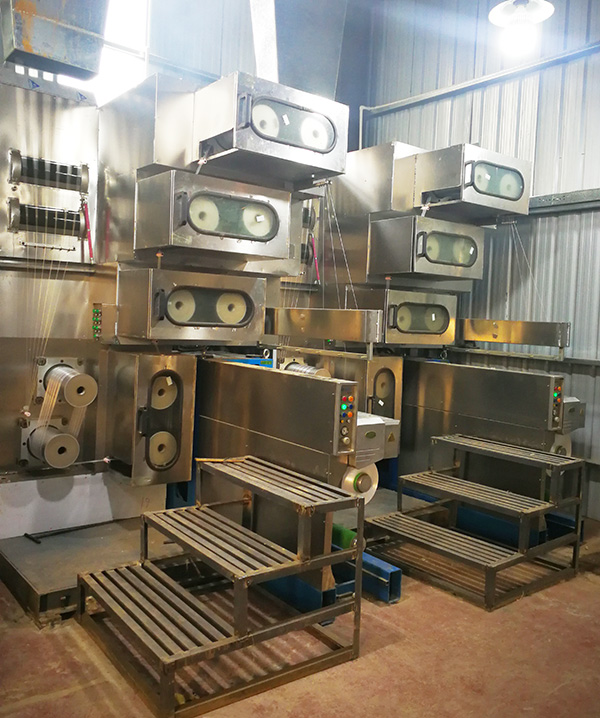

High-strength fiber FDY spinning equipment:

High-strength fiber FDY spinning equipment is mainly used for spinning 150D～1400D denier high-strength fiber filament, the product is fully oriented drawn yarn (FDY). Monofilament strength of up to 7.0g / D or more. Its raw material is polypropylene slice.

967彩票High-strength polypropylene filament mainly used for: industrial sewing thread, slings, geotextiles, marine ropes, conveyor belts, fire hoses, safety and protection with wire mesh and other fields.

967彩票 The basic parameters of the device:

 Finished fineness: 150D～1400D (Dan)

967彩票 Mechanical speed (maximum): 3000m / min

967彩票 Process speed (maximum): 1600m / min ~ 2200m / min

967彩票Each site tow count: 4,6,8 beam

 Number drafting zone: Zone 4

967彩票Equipment main components:

1, the automatic feeder

2, masterbatch injection machine

967彩票3, screw extruder

4, pre-filter (selected by the user)

5 spinning boxes and components

6, metering pumps and drive

7, side blowing, refrigeration units and corridor

8, drawing heat roller

9, winding frame and oil tanker means

10, the network device

11, automatic winding machine

967彩票12, the electronic control system: with screw voltage control cabinet, spinning box temperature control cabinet, temperature-controlled cabinet drawing, drawing frequency counters, frequency counters and winding conventional electrical control system.

967彩票Device main features:

967彩票1. monofilament strength: 6.8 ~ 7.5g / d

2. The high-frequency heat roller can be heated, low energy consumption, hot roll temperature uniformity

967彩票3. side blowing velocity uniformity and stability

4. equipment operation and stability, low failure rate, easy operation and maintenance
